20' Spalding Utility Launch


Category: Power Boats (Other)

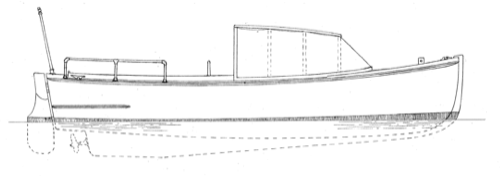

20'  Spalding Utility Launch profile

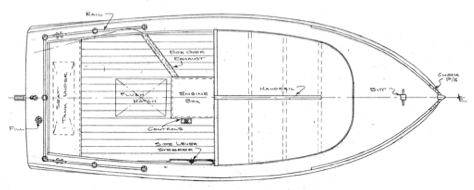

20'  Spalding Utility Launch overhead

Rugged little launch with generous beam.

Construction features a traditional backbone of bolted-up oak, steam-bent frames and strip-planking. Four different arrangements are shown.

Construction: Strip-planked over steam-bent frames.

Alternative construction: Carvel, cold-molded or glued-lapstrake plywood.

Lofting is required.

Plans include 7 sheets.



DESIGN SPECS
Designer:
Eliot Spalding
LOA:
20'
Beam Length:
7' 8"
Draft Length:
1' 9"
LWL:
19' 4"
Displacement:
2,885 lbs.
Materials:
Wood
Propulsion:
Westerbeke 4-91 inboard gas or diesel
Skill Level to Build:
Intermediate to Advanced
Available as:
Complete Plans
Cost:
$120.00
Website:
Contact Information:

The WoodenBoat Store
Post Office Box 78
Brooklin, Maine 04616 USA
Phone: 1.800.273.7447

<< VIEW ALL BOAT PLANS & KITS
