Sailboats Cruising


Pathfinder

Harbor Woodworks offers custom kits and boats, tailored to your specifications and level of completion. We ship to the U.S. and Canada.

Some of John’s description follows --




Kahuna Nui

Kahuna Nui is intended for extended offshore cruising and living aboard. She is available as a sailing auxiliary or as a motorsailer with an enclosed pilothouse.




Sandy sailplan

Sandy was designed for extended coastal cruising in such areas as the east coasts of the U.S. or Australia, the Pacific Northwest, or Europe.




Raven Lady Plans

Designed as a cat schooner; both sails have big round poles at their leading edges. Considering the performance potential of this hull, this rig is appropriate. The stayless rig is clean and will be cheap to build with solid fir poles.




24-foot Lynx

The 24-foot Lynx was designed as the smallest boat with which a couple could contemplate an ocean voyage. The hull is a multi-chine hull to make it easy to build in flat plate steel. There are two chines.




ETTA MAY sailing photo

Auxiliary cruising sloop evolving from the Hudson River and Friendship sloops.

Excellent for single handling with 450 sq. ft. of working sails, open decks and large cockpit.




Garvey 33 Sail Plan

GARVEY 33




Sharpie 31.5 EGRET Sail Plan

Sharpie 31.5′ EGRET




Hampton Flattie Sail Plan

24′ Chesapeake Bay Hampton Flattie

L.O.A.: 24′ 2″
L.W.L.: 22′ 8″
Beam: 7′ 9″
Draft: 2′ ½″/3′ 9″
Sail Area: 263 sq ft
Weight: 2,500# (approx)




26 foot Auxiliary Ketch

26′ Auxiliary Ketch

Based on a traditional fishing vessel type called a “Cowhorn” this design features an inboard engine and ballast keel.




Sea Bright 36 Sail Plan

SEA BRIGHT 36

L.B.P.: 36′

BEAM: 10′ 11″

DRAFT: 1′ 8″/4′ 7″

DISPLACEMENT: 9,500 lbs

BALLAST: 3,483 lbs, 2,000 lbs lead foil laminated in keel; 250 lbs trim; 633 lbs water; 600 lbs fuel




Sail Plan PS-28

Pilot Schooner 28

L.O.A.:  29′ ½″

L.B.P.:  28′ 10 ½″

L.O.D.:  27′ 9″

L.W.L.:  25′ 3 ½″

BEAM:  9′ 4″

DRAFT:  3′ 10″

SAIL AREA :  413 sq. ft.

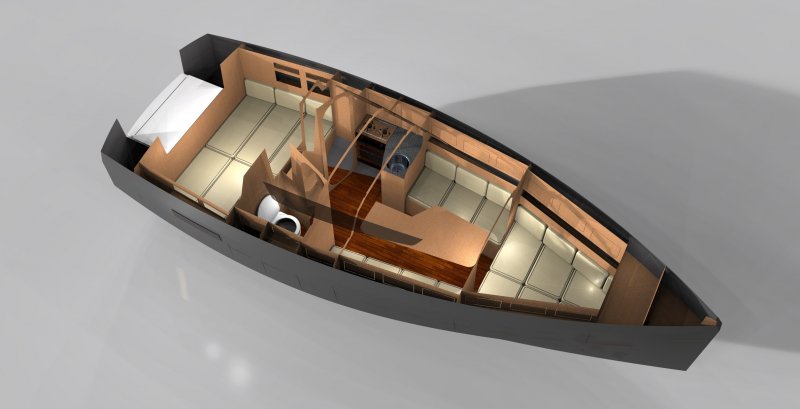

The AC 75 Evolution design input was to crate a trailerable boat with a small displacement, building with traditional materials such as wood. Another request was to have a comfort and an interior volume typical of larger size boats.




Petrel 28

A smart sturdy fast paced cruiser; huge interiors for a 8.80 LOA boat, good performance under sail, a very good handling and seaworthy boat even in rough conditions; round hull construction in plywood & epoxy , plans are higly detailed and co




30'  Malabar Jr profile

Carvel-planked, outside ballasted cruiser with choice of three or four berths.

Construction: Carvel planked over steamed frames

Alternative construction: Cold-molded or strip




MYSTIC Sharpie profile

This 32′ double-ended sharpie ketch will provide the amateur builder with a shoal-draft cruising boat of simple construction.

Construction: Plywood planking over sawn frames.

Lofting is required.

Plans include 4 sheets.




Lubec Boat profile

A double-ended boat legendary for its sea keeping abilities.

These plans provide very complete drawings covering everything from backbone to masthead.

Construction: Strip-planked over steam-bent frames.




27' 9"  Cutter, CAPT. BLACKBURN profile

For cold-molded construction, a rugged cutter, popular with serious cruisers.

Construction: Cold-molded.

Alternative construction: Carvel, strip.

Lofting is required.

Plans include 11 sheets.




Wittholz 35' Departure Class profile

An oceangoing V-bottomed auxiliary with accommodations for four to six people.

Construction: Carvel planked over sawn frames.

Alternative construction: Plywood (plans included).

Lofting is required.




Wittholz 17' Catboat profile

V-bottomed cruiser designed for plywood construction with accommodations for two and inside ballast.

Construction: Plywood planking over sawn frames.

Lofting is required.

Plans include 11 sheets.
