MIA 15


Category: Power Outboard Boats
Mia 15
Mia 15
Mia 15
Mia 15
Mia 15

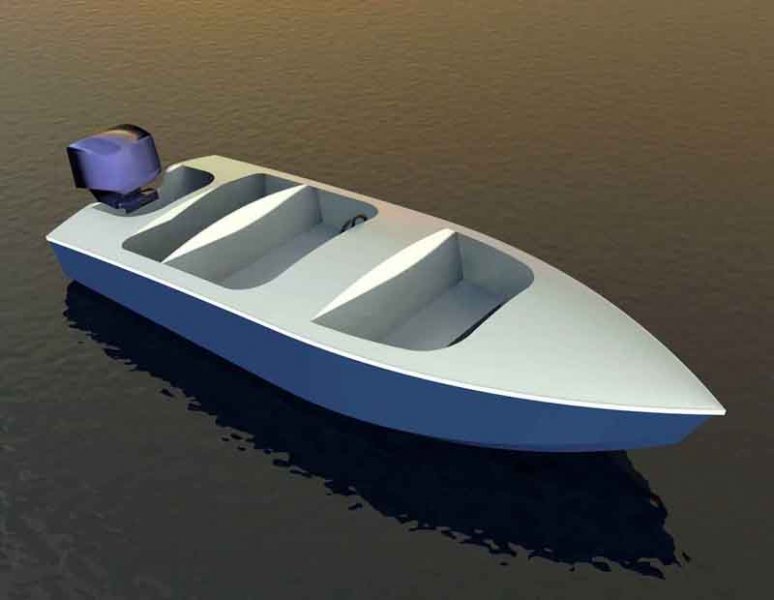

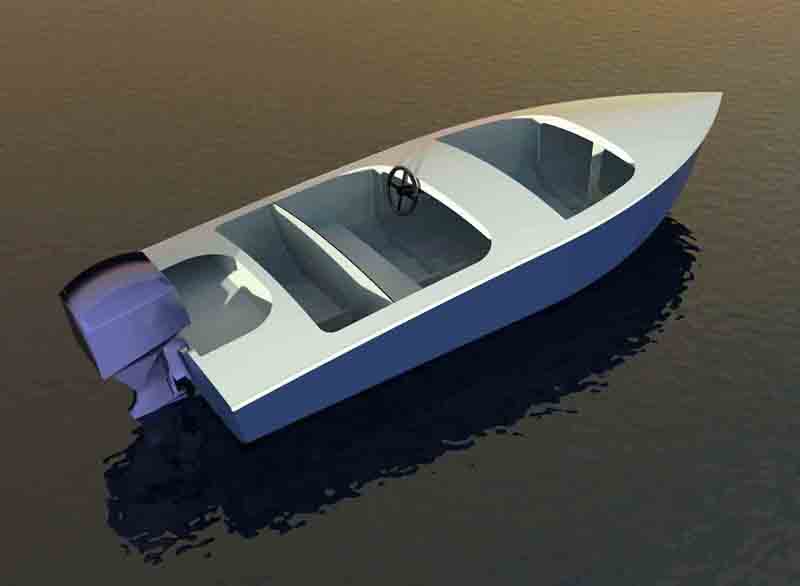

Mia was the second design that I published, a 12′ runabout, inspired in part by William Jackson's 1955 design for the “Ace” which was produced by the Sande Boat Works between 1956 and 1962 (www.sandeace.com), and in part by the 1950’s designs of Hal Kelly.

Mia has been a popular design and this has prompted me to produce this extended 15′ version — Mia 15.

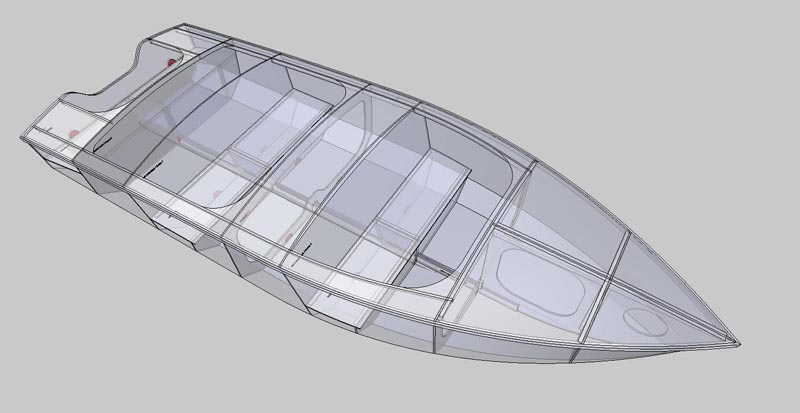

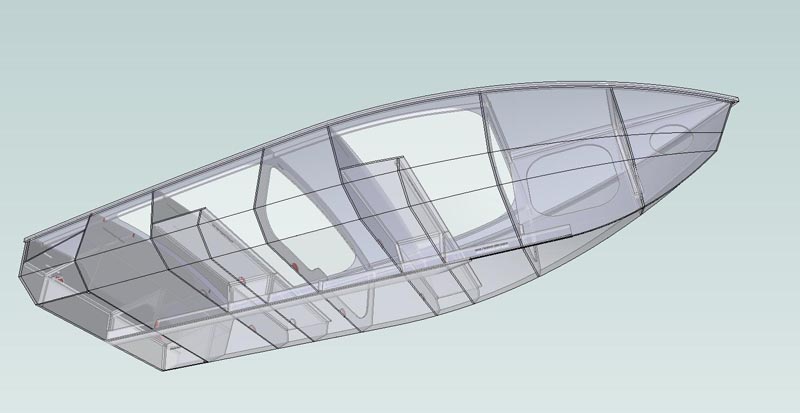

The forward section is essentially the same as Mia, the space between the cockpits has been increased, there’s more space behind the rear seats and this design incorporates a motor well.

The boat is designed for short shaft outboard engines in the 10 to 30 hp range.



DESIGN SPECS
Designer:
Andrew Walters
Year of Design:
2014
LOA:
15' 1"
Beam Length:
5' 4"
Displacement:
270 lbs approx
Materials:
Wood
Propulsion:
Outboard 10 to 30 hp
Skill Level to Build:
Beginner
Available as:
Complete Plans
Cost:
$25
Website:
Contact Information:
