Kitty Hawk 26


Category: Fishing Powerboats
Kitty Hawk 26 Arrangement

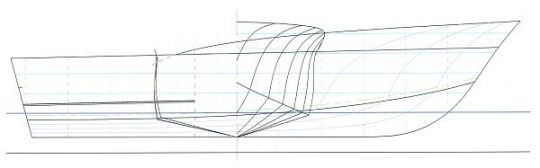

Kitty Hawk 26 Hull
Kitty Hawk 26

The Kitty Hawk 26 is a true Carolina Style fishing boat. From her dramatic wide flaring bow to the tumblehome back aft, she would look right at home on the Outer Banks! Her hull is cold molded from two layers of 9mm Meranti plywood. Bottom stringers and frames are cut from 18mm Meranti. Her hull is glassed on the outside to ensure a long life with minimal maintenance. The Kitty Hawk 26 features a large cockpit with lots of room aft of the leaning post. The 9' beam leaves a nice space on either side of the splash well for an angler to work a fish around the aft corners of the boat. Up forward there is a small casting platform with lots of storage underneath. The console is large enough to give protection from the weather and has space inside for a portable head. Available as both a complete plan set with full size patterns or as a CNC cut frame kit. The curvaceous hull of the Kitty Hawk 26 will stand out in nearly any harbor!



DESIGN SPECS
Designer:
Timm Smith
Year of Design:
2010
LOA:
26' - 2"
Beam Length:
9'
Draft Length:
14 5/8"
Displacement:
6,300 lbs.
Materials:
Wood
Propulsion:
Single Outboard to 300 HP
Skill Level to Build:
Moderate
Cost:
$600 for Plan Set/$3,800 for Kit
