Old Gaffer
DESIGN SPECS
<< VIEW ALL BOAT PLANS & KITS
18′ double ended, auxiliary daysailer.

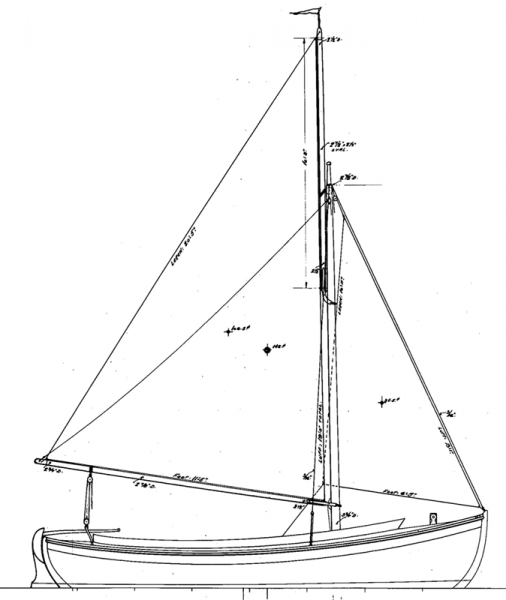

Gaff rigged sloop with large cockpit and small cudy forward.
Traditional carvel construction with outboard rudder and ballast keel.
Many boat built to this design over the years including some by amateur builder.
Bronze hardware for 22 fitttings available from patterns used to construct previous boats.
DESIGN SPECS
| Designer: | Peterson Associates Inc. |
| Year of Design: | 1934 |
| LOA: | 18' 9/16" |
| Beam Length: | 6' 3" |
| Draft Length: | 2' 6" |
| LWL: | 16' 4 5/16" |
| Displacement: | 2750 # |
| Materials: | Wood |
| Propulsion: | 5 HP or great inboard or outboard on bracket options |
| Skill Level to Build: | Moderate |
| Available as: | Complete Plans |
| Cost: | $350.00 |
| Contact Information: | Peterson Associates Inc. |
