Plans & Kits

Roberts 246

Catamaran, 13 foot by 6+ foot wide. Wooden design using 1/4 ply and fiberglass covered. Single sailing Rig or optional Bi plane rig. Optional Cabin.

Lion 870 comfortable yacht composite structures is a continuation of a series of yachts developed by the company Unik Yachts.

In the winter of 2012 a very good friend leant me an old copy of Nautical Quarterly. An article about Catboats caught my attention — I was and still am taken by their beautiful lines.I decided to design one with the aim of building it in the summer.

DIAPASON is a small cabin cruiser 7,50 m length. It is a modern, simple boat with racy lines, good performances and internal accommodations suitable for cruising.

This boat is a larger version of my popular POINT COMFORT 18, a traditional Chesapeake Bay workboat type reinterpreted for simpler and more modern construction.

Designed as a cat schooner; both sails have big round poles at their leading edges. Considering the performance potential of this hull, this rig is appropriate. The stayless rig is clean and will be cheap to build with solid fir poles.

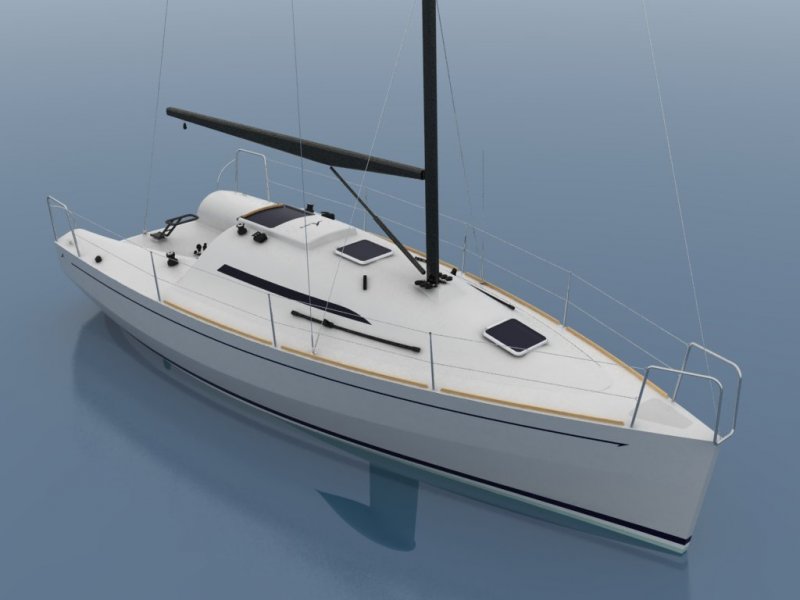

This boat, with a LOA of 8 mt,develops an internal volume such as to allow 6 crew members a sailing cruise.The hull lines and deck lines are to corner for simplicity of construction, and are harmonized with the hull volume.

24′ Chesapeake Bay Hampton FlattieL.O.A.: 24′ 2″L.W.L.: 22′ 8″Beam: 7′ 9″ Draft: 2′ ½″/3′ 9″Sail Area: 263 sq ftWeight: 2,500# (approx)Proportionately, this is the largest sharpie type known, and shows the maximum beam ratio successfully used in the sharpie type.

Full-sized patterns for molds, so lofting is not required. Construction: Carvel-planked over steamed frames. Alternative construction: Lapstrake or strip. Plans include 4 sheets.
