25' Bassboat
DESIGN SPECS
<< VIEW ALL BOAT PLANS & KITS

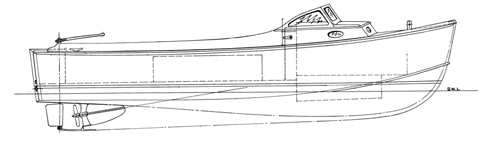

Safe, dry, fast, and seaworthy V-bottomed inboard powerboat designed for carvel planking.

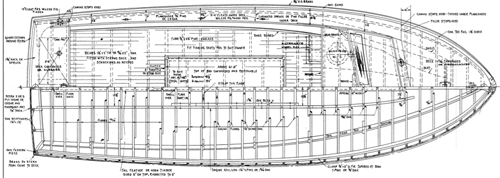

Construction: Carvel planked over sawn frames.
Alternative construction: Strip
Lofting is required.
Propulsion: 6 cylinder 350 cubic inboard.
Plans include 6 sheets.
DESIGN SPECS
| Designer: | Eldredge-McInnis |
| Year of Design: | 1951 |
| LOA: | 25' |
| Beam Length: | 8' 7-1/2" |
| Draft Length: | 2' 2" |
| LWL: | 23' 6" |
| Displacement: | 5,358 lbs. |
| Materials: | Wood |
| Propulsion: | 300-350 cu in inboard |
| Skill Level to Build: | Advanced |
| Available as: | Complete Plans |
| Cost: | $150.00 |
| Website: | |
| Contact Information: | The WoodenBoat Store |
